Solid-State MIMO Interferometric Radar
See the
unseen
movement
Pioneering digital imaging real-aperture radar. Sub-millimeter precision, zero targets, 24/7 autonomous monitoring for slopes, structures, and critical infrastructure.
Slope hazards:
the unbearable cost
Geological environments along critical infrastructure corridors are inherently complex. Sudden landslides and collapses occur without warning. Traditional manual inspection cannot provide 24/7 coverage — disasters often strike at night or during extreme weather, when no one is watching.
Sudden & Unpredictable
Disasters often occur at night or during extreme weather, making manual detection impossible.
Massive Economic Loss
Road closures and emergency repairs cost billions annually, paralyzing critical transport arteries.
Three product lines, full spectrum monitoring
From creep to vibration — millimeter to micron
Surface Deformation

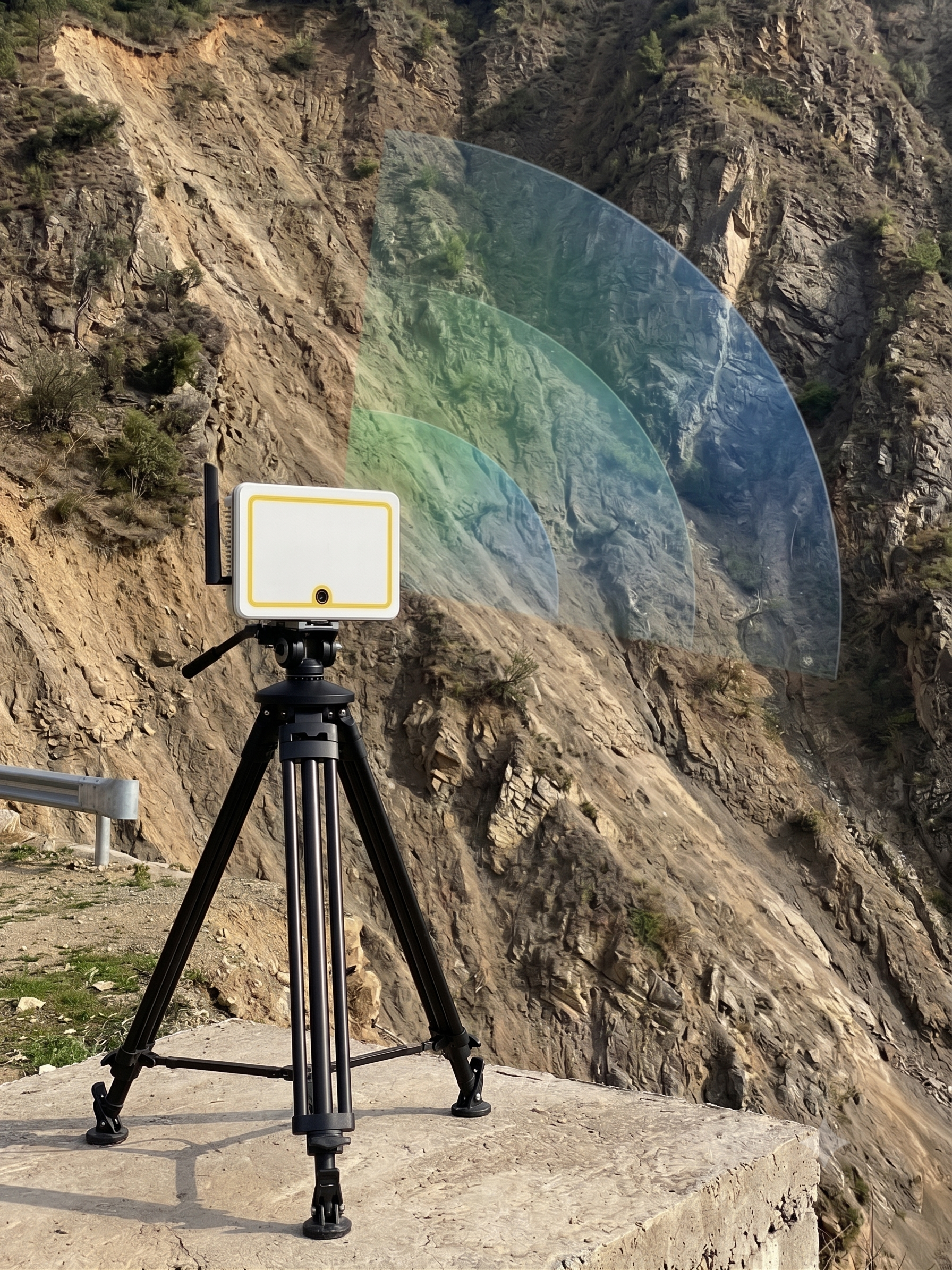

K500 / S2000 — for slopes, tailings dams, waste dumps, and open-pit mines. Zero corner reflectors, minute-level updates, 0.1–1 mm accuracy.
View products →Structural Health
F300 — for bridges, buildings, towers, and large civil structures. 200 Hz sampling, ≤0.1 mm accuracy, single-module integrated design.
View products →UAV-borne InSAR
Airborne interferometric SAR for wide-area surface deformation mapping. Currently in early-stage R&D — stay tuned.
Coming soonWhy solid-state MIMO radar
Differentiation that matters, quantified
Wide Area Coverage
Up to 2000 m range, 100° FOV, no blind spots.
Sub-mm Precision
Interferometric phase measurement delivers 0.1–1 mm accuracy.
All-weather Operation
Microwave penetrates rain, snow, fog, and dust. 24/7 reliable.
Zero Targets
No corner reflectors needed. Deploy and measure from a safe distance.
Low Power Design
Average power 15–25 W. Solar-ready for off-grid autonomous operation.
Multi-level Alerts
Built-in configurable alarm. SMS, phone call, and platform push notification.
Surface deformation radar lineup
K500 · S2000
| Parameter | K500 | S2000 |
|---|---|---|
| Application | Short-mid range slopes | Long-range slopes |
| Range | 500 m | 2000 m |
| Accuracy | 0.1–1 mm | 0.1–1 mm |
| Range resolution | 0.15 m | 0.15 m |
| Angular resolution | 0.8° | 0.5° |
| Azimuth FOV | ≥100° | ≥100° |
| Elevation FOV | ≥40° | ≥40° |
| Data cycle | 45 s | 45 s |
| Dimensions | 395×120×47 mm | 320×220×65 mm |
| Weight | 3 kg | 4 kg |
| Avg. power | 25 W | 15 W |
| IP rating | IP65 | IP65 |
| Op. temp. | −40 ~ +65 °C | −40 ~ +65 °C |
| Data interface | Ethernet / 4G | Ethernet / 4G |
Ready to make the unseen visible?
Contact our team for a customized monitoring solution for your project. We provide on-site demonstrations and technical consultations.
